Search



Overview

The Netscape Web Publisher search function provides you with the ability to search the file information and contents of documents on a remote server. Server documents can be in a variety of formats, such as HTML, Microsoft Word, Adobe PDF, and WordPerfect. The server converts many types of non-HTML documents into HTML as it indexes them so that you can use your web browser to view the documents that are found for your search.

You can search through server documents for a specific word or attribute value, obtaining a set of search results that list all documents that match the query. You can then select a document from the list to browse it in its entirety. This provides easy access to server content.

There are four parts to text searching:

Search home page

There is a search home page, at http://search-ui/examples, that provides individual links to the search query interfaces, samples of search input and output, and a brief tutorial on how your server administrator can customize the interface.



Preparing data for searching

To enable searching capability on your server, the server administrator begins by identifying the documents that you want to be able to search. Before you can execute searches, you need a database of searchable data against which you can target your searches. Your server administrator has to create a document information database, called a collection, that indexes and stores the content and file properties for each of the documents you want to be able to search.

In the case of Web Publisher, there is a default web publishing collection that contains all the documents that you have published, uploaded, or otherwise manipulated through Web Publisher. Your server administrator can also do bulk indexing of web publishing data for you, for example, by indexing all the documents in the document directory defined for Web Publisher.

Collections contain such information as the format of the documents, the language they are in, their searchable attributes, the number of documents in the collection, the collection's status, and a brief description of the collection. For more details, see the section "Displaying collection contents."



About collection attributes

Server documents can be in a variety of formats, such as HTML, Microsoft Excel, Adobe PDF, and WordPerfect. If there is a conversion filter available for a particular file format, the server converts the documents into HTML as it indexes them so that you can use your web browser to view the documents that are found for your search.

There are conversion filters for documents in these formats:

Note
If a PDF file is password-protected or contains special graphical navigation icons, the conversion filter cannot index the file.
Certain file formats have a default set of attributes that are indexed for files of that type, as shown in Table 5.1. Note that ASCII files have no default attributes.
Table 5-1: The default attributes indexed for each file format
File format  Attribute  Type  Description
ASCII  -  -  -
HTML  Title  text  The user-defined title of the file.
SourceType  text  The original format of the document.
NEWS  From  text  The source userID of the news item.
Subject  text  The text from the subject field of the news item.
Keywords  text  Any keywords defined for the news item
Date  date  The date the news item was created.
EMAIL  From  text  The source userID of the email.
To  text  The destination userID of the email.
Subject  text  The text from the email's subject field.
Date  date  The date the email was created.
PDF  InstanceID  text  An internal ID number.
PermanentID  text  An internal ID number.
NumPages  integer  The number of pages in the document.
DirID  text  The directory where the PDF file exists.
FTS_ModificationDate  date  The document's last modification date.
FTS_CreationDate  date  The document's creation date.
WXEVersion  integer  The version of Adobe Word Finder used to extract the text from the PDF document.
FileName  text  The Adobe filename specification.
FTS_Title  text  The document's title.
FTS_Subject  text  The document's subject.
FTS_Author  text  The document's author.
FTS_Creator  text  The document's creator.
FTS_Producer  text  The document's producer.
FTS_Keywords  text  The document's keywords.
PageMap  text  The page map, describing the word instances for the page.



META-tagged attributes

By default, HTML collections only have Title and SourceType attributes, but they can be set up to also permit searching and sorting by up to 30 file attributes tagged with the HTML <META> tag.

For example, a document could have these META-tagged attributes:

<META NAME="Writer" CONTENT="J. S. Smith">
<META NAME="PubDate" CONTENT="07-24-97">
<META NAME="Product" CONTENT="Communicator">
If this document had been indexed with its META tags extracted, you could search it for specific values in the writer, publication date, or product fields. For example, you could enter this query: Writer <contains> Smith or PubDate > 1/1/97.

Note
Any attribute values in META-tagged fields are text strings only, which means that dates and numbers are sorted as text, not as dates or numbers. Also, illegal HTML characters in a META-tagged attribute are replaced with a hyphen.


Performing a search: the basics

Users are primarily concerned with querying the data in the search collections and getting a list of documents in return. The default installation of the Enterprise server includes a set of search query and result pages to allow users a quick and easy way of doing searches.



Creating a search query

There are three default search query pages: standard and advanced HTML forms and a Java-based guided applet.

On the standard search form, you select a collection to search against and type in a word or phrase to search for using the query language operators.

On the advanced HTML form, you have the additional options of selecting multiple collections to search through, establishing a sort sequence for the results, and defining how many documents are to be displayed on a page at a time (clicking the Prev and Next arrows moves you through the pages of results).

In the guided Java-based search applet, the applet uses several drop-down lists to guide you through constructing a query. You must have Java enabled for your browser to use this applet.



The standard search query form

To perform a standard search, follow these steps:
  1. Type this URL in the location field in your web browser:

    2. http://yourServer/search

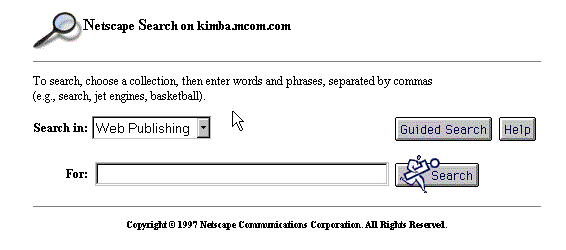

Figure 5-1:The standard search query page

  1. In the search query page that appears, choose the collection you want to search through from the drop-down list in the Search In field.

  2. Enter the word or phrase for your search query in the For field. You can create complex queries by combining operators. See "Query operators: a reference" for details about the search operators.

  3. Click the Search button to execute your query.


The advanced HTML search query page

You can choose to use the advanced HTML search form, which helps you construct the query. This form is especially useful if you want to search through more than one collection or that produces results sorted by a specific attribute value.

To access advanced HTML search through the standard search query page, follow these steps:

  1. Go to the standard search query page by typing this URL in the location field in your web browser:

    2. http://yourServer/search

  2. Disable Java for your browser. To do this, use the Languages option preferences menu command.

  3. Click Guided Search on the standard search form to display the advanced HTML query page.

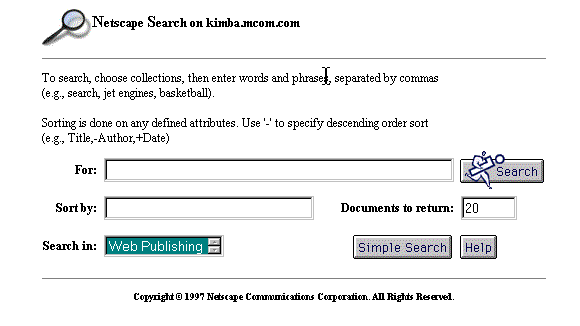

Figure 5-2: The advanced HTML search query page

  1. In the For field, type in the word or phrase you want to search for. You can create complex queries by combining operators. See "Query operators: a reference" for details about the search operators.

  2. You can type in one or more attributes to sort the results by. The default is an ascending sort order, but you can indicate a descending sort order with a minus, as in -Pubdate. (See "Sorting the results" for more information about sorting).

  3. Depending on how many fields are listed for each document in the search results page or how many you want to see at a time, you can expand or limit the number of matching documents you want the search to return at a time. The Prev and Next buttons allow you access to additional pages of documents if there are too many to fit on a page at once.

  4. Use the drop-down list in the Search In field to choose the collection you want to search through. You can select more than one collection by holding down the Control key as you click on another collection. All collections in a query must be in the same language.

  5. Click the Search button to execute your query.


The guided search applet

You can choose to use the Java-based guided search interface, which helps you construct the query. This is especially useful if you want to build a query that has several parts, say searching for a word in the documents' content as well as a specific attribute value.

Note
Make sure Java is enabled for your browser. To do this, use the Languages option preferences menu command.
To access guided search from the standard search query page, follow these steps:
  1. Obtain the standard search query page by using this URL:

    2. http://yourServer/search

  2. Click Guided Search on the standard search page to display the guided Java-based query page.

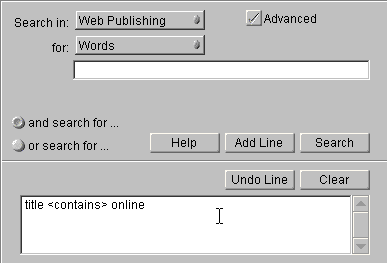

Figure 5-3: The guided search query applet

  1. Choose the collection you want to search through from the drop-down list in the Search In field.

  2. Use the For drop-down list to select the type of element you wish to search for. In this example, choose Words.

  3. In the blank text field, type in the word you want to search for. See "Query operators: a reference" for details about the search operators.

  4. Click Add Line to add the first part of the query. The word appears in the large text display box at the bottom of the form.

  5. To add to your query, choose another element from the drop-down list. In this example, choose Attribute.

  6. A new drop-down list appears on the right side of the form, listing all attributes that are available for the chosen collection. Choose the attribute you want to search against.

  7. From the drop-down list above the text input field, choose a query operator (Contains, Starts, Ends, Matches, Has a substring) or logical operator (=, <, >, <=, >=) for your query.

  8. In the blank text field, type in the attribute value you want to search for.

  9. Click Add Line to add another line for your query. You can click Undo Line to remove the last line you added or Clear to remove the entire query.

  10. Click the Search button to execute the search.


Getting search results

There are two standard types of search results: a list of all documents that match the search criteria and the text of a single document that you selected from the list of matching documents.



Access permission checking

Which documents you get for your search results depend on the access control rules set for each of the documents and collections involved. The server does an access check when you perform these actions: If the server encounters an access control rule that restricts your access to a document that matches your query, the document is not listed as part of the search results. If you do not have permission to view a document listed in the search results, the server does not display it.



Listing matched documents

In the default installation of the Netscape Enterprise Server, when you execute a search from either the simple or advanced search query pages, you obtain a list of the documents that match your search criteria. The list gives some standard information about each file, depending on the collection's format. For example, the default results page for email collections give subject, to, from, and date for each entry and news collections give subject, from, and date for each entry.

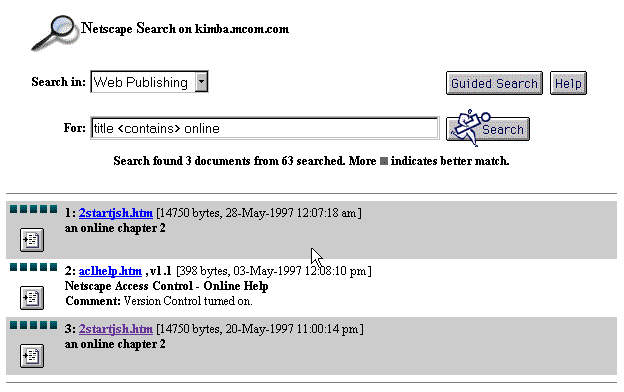

Figure 5-4: Sample search results

The kind of file format in the collection indicates which default attributes are available for searching. See "About collection attributes" and Table for information about the attributes for each format.

For entries resulting from a search that checks for comparative proximity of words to each other or for the exactness of the match, the file's ranking can be provided by showing a score.

If there are more matching documents than can fit on a page, click Next to see the next batch. You can always execute a new search by entering new query data and clicking Search.



Sorting the results

By default, or if you don't enter anything in the Sort By field on the advanced HTML query page, all documents matching the search are output according to their relevance ranking (for queries that consider this) or their position in the server file database (for other queries).

If you enter an attribute name in the Sort By field, the documents are displayed in an ascending sort sequence. You can list the documents in a descending sort sequence by adding a minus sign (-) prefix to the attribute, as in -keywords or -title. You can do a multiple sort, by typing in more than one field, as in Author,-PubDate.

In a short query, sort order usually isn't critical, but in queries that result in a great many matches, you may want to set a sort value in order to obtain useful search results. Note, however, using a special sort sequence may impact the search's performance.

Note
Attribute values in META-tagged fields are text strings, which means that dates and numbers are sorted as text, not as dates or numbers. To convert the value into a date or number, you can create a new property in the Web Publishing|Add Custom Property form and check the box that marks this property as a META-tagged attribute.


Displaying a document

In the default installation of Netscape Enterprise Server, when you obtain a list of the documents that match your search criteria, you can select a single document to display in your web browser. The browser can display the original document or you can choose to display the document with additional formatting so that your search query word or phrase is highlighted with such text attributes as color, boldface, or blinking.

To view the original document, click on the hypertext link containing the document's URL. In the case of documents that have been converted into HTML, the URL points you to the original document. Clicking on this link spawns an external viewer to display the document in its original format.

To view a highlighted document, click on the graphical element next to the document's entry in the search results.



Displaying collection contents

You can display the contents of your collection database to see which attributes are set for each collection. Your server administrator may have defined some collections as non-displayable, in which case they are not inclued in the output. The collection contents typically include these items: To display your collection database contents, type this line in the web browser's URL location field (be sure not to include any spaces):

http://yourServer/search?NS-search-page=c



Using the query operators

To perform an effective search, you need to know how to use the query operators. You can only do Boolean searches, so all the subsequent information is based on Boolean search rules.

Note
The query language is not case-sensitive. The examples use uppercase for clarity only.
The search engine interprets the search query based on a set of syntax rules. For example, by entering the word region, the actual word region and all its stemmed variations (such as regions and regional) are found. The search results are ranked for "importance," which means how close the matched word comes to the originally input search criteria. In the example above, region would rank higher than any of the stemmed variants.

Not all queries rank their results. Only those queries that can have varying degrees of matching can be ranked. For example, <CONTAINS> queries either do or do not contain the given string, but <NEAR> queries can be ranked according to how close the words are to each other: words found closer together are listed at the top of the search results, while those that are far apart are put at the bottom of the results.



Default assumptions

The search query language has some implicit defaults and assumptions that dictate how it interprets your input. In some cases, you can circumvent the defaults, but here is how the search engine decides what you want as the search results:

<STEM>--Search finds all documents that contain any stemmed variant of the search word or phrase. The search engine looks at the meaning of the word, not just its spelling. For example, if you want to search on plan, the results would include documents that contain planning and plans, but not those that contain plane or planet.

<MANY>--Search considers how often the search word or phrase appear in the found documents and ranks the results for frequency (or relevancy).

<PHRASE>--Search considers words separated by spaces to be part of a phrase. For example, Monterey otter is interpreted as a phrase and both must be present and together to be found. Such a search would not find documents containing sea otter or Monterey Bay.

Note
In any case where it's not clear that two words are to be considered as a phrase, you can use parentheses for clarity. For example,
<PHRASE> (rise "and" fall).
OR--Search considers each word or phrase in the query separated by a comma to be optional, although at least one must be present. In effect, this is an implicit OR operation. For example, Monterey, otter is interpreted as searching for documents that contain either Monterey or otter. Note that angle brackets are not required for OR.



Search rules

To create complex searches, you can combine query operators, manipulate the query syntax, and include wildcard characters.



Angle brackets

With the exception of the AND, OR, NOT, and the date and numeric comparison operators, you need to enclose query operators in angle brackets, as in <CONTAINS> and <WILDCARD>.



Combining operators

You can combine several query operators into a single query to obtain precise results. For example, you can input the following query to limit your search to those documents that have Bay and Monterey but to exclude those that mention Aquarium

Monterey AND Bay NOT <CONTAINS> Aquarium

You can achieve even greater precision by including some implicit phrases, as in the following query that finds documents that refer to the Monterey Bay Aquarium by its full name and also mention otters but do not refer to shark:

Monterey Bay Aquarium AND otter AND NOT shark



Using query operators as search words

You can use any of the query operators as a search word, but you must enclose the word in quotation marks. For example, you could search for documents about the ebb and flow of the tides with the following query:

<CONTAINS> ebb "and" flow



Canceling stemming

You can cancel the implicit stemming by using quotation marks around a word. For example, you can be exact by using a query such as this:

"plan"

This search only results in documents that contain the exact word plan. It ignores documents with plans or planning.



Modifying operators

You can use AND, OR, and NOT to modify other operators. For example, you may want to exclude documents with titles that contain the phrase theme park. A query such as this would solve this problem:

Title NOT <CONTAINS> theme park



Determining which operators to use

Use the following reference to help determine which operators to use. Note that the query language is not case-sensitive, so <starts> and <STARTS> are equivalent. This document uses uppercase for clarity only.
Table 5-2: Deciding which operator to use
Type of Search  Valid Operators  Examples
Finding documents by date or numeric value comparison.  is equal to (=),
greater than (>),
greater than or equal to (>=),
less than (<),
less than or equal to (<=) 		 DATE >= 06-30-96

Finds documents created on or after June 30, 1996.
Finding words or phrases in specific document fields or in specific locations in the field.  <STARTS>,
<CONTAINS>,
<ENDS>,
is equal to (=) 		 Title <STARTS> Help

Finds documents with titles that start with Help.
Finding two or more words in a document.  AND,
<NEAR/1> 		 specifications AND review

Finds documents that contain both specifications and review.



Query operators: a reference

The following table describes some commonly used operators and provides examples of how to use each one. All are relevance ranked except where explicitly noted.

Table 5-3: Query language operators
Operator  Description  Examples
AND
 Adds mandatory criteria to the search. Finds documents that have all of the specified words.  Antarctica AND mountain climb

Finds only documents containing both Antarctica and mountain climb plus all the stemmed variants, such as mountain climbing.


<CONTAINS>
 Finds documents containing the specified words in a document field. The words must be in the exact same sequential and contiguous order.

You can use wildcards. Only alphanumeric values.

Does not rank documents for relevance.

 Title <CONTAINS> higher profit

Finds documents containing the phrase higher profit in the title. Ignores documents with profits higher in the title.


<ENDS>
 Finds documents in which a document field ends with a certain string of characters.

Does not rank documents for relevance.

 Title <ENDS> draft

Finds documents with titles ending in draft.
equals (=)  Finds documents in which a document field matches a specific date or numeric value.  Created = 6-30-96

Finds documents created on June 30, 1996.
greater than (>)  Finds documents in which a document field is greater than a specific date or numeric value.  Created > 6-30-96

Finds documents created after June 30, 1996.
greater than or equal to (>=)  Finds documents in which a document field is greater than or equal to a specific date or numeric value.  Created >= 6-30-96

Finds documents created on or after June 30, 1996.
less than (<)  Finds documents in which a document field is less than a specific date or numeric value.  Created < 6-30-96

Finds documents created before June 30, 1996.
less than or equal to (<=)  Finds documents in which a document field is less than or equal to a specific date or numeric value.  Created <= 6-30-96

Finds documents created on or before June 30, 1996.


<MATCHES>
 Finds documents in which a string in a document field matches the character string you specify.

Ignores documents that contain partial matches.

Does not rank documents for relevance.

 <MATCHES> employee

Finds documents containing employee or any of its stemmed variants such as employees.


<NEAR>
 Finds documents that contain the specified words. The closer the terms are to each other in the document, the higher the document's score.  stock <NEAR> purchase

Finds any document containing both stock and purchase, but gives a higher score to a document that has stock purchase than to one that has purchase supplies and stock up.


<NEAR/N>
 Finds documents in which two or more specified words are within N number of words from each other. N can be an integer up to 1000. Also ranks the documents for relevance based on the words' proximity to each other.  stock <NEAR/1> purchase

Finds documents containing the phrases stock purchase and purchase stock.

Ignores documents containing phrases like purchase supplies and stock up because stock and purchase do not appear next to each other.

When N is 2 or greater, finds documents that contain the words within the range and gives a higher score for documents which have the words closer together.


NOT
 Finds documents that do not contain a specific word or phrase.

Note: You can use NOT to modify the OR or the AND operator.

 surf AND NOT beach

Finds documents containing the word surf but not the word beach.


OR
 Adds optional criteria to the search. Finds any document that contains at least one of the search values.  apples OR oranges

Finds documents containing either apples or oranges.


<PHRASE>
 Finds documents that contain the specified phrase. A phrase is a grouping of two or more words that occur in a specific order.  <PHRASE> (rise "and" fall)

Finds documents that include the entire phrase rise and fall. The and is in quotes to force the search to interpret it as a literal, not as an operator.


<STARTS>
 Finds documents in which a document field starts with a certain string of characters.

Does not rank documents for relevance.

 Title <STARTS> Corp

Finds documents with titles starting with Corp, such as Corporate and Corporation..
<STEM>

(English only)

 Finds documents that contain the specified word and its variants.  <STEM> plan

Finds documents that contain plan, plans, planned, planning, and other variants with the same meaning stem. Ignores similarly spelled words such as planet and plane that don't come from the same stem.


<SUBSTRING>
 Finds documents in which part or all of a string in a document field matches the character string you specify.

Similar to <MATCHES>, but can match on a partial string.

Does not work with wildcards.

Does not rank documents for relevance.

 <SUBSTRING> employ

Finds documents that can match on all or part of employ, so it can succeed with ploy.

Note: This works with literals only. If you input web*, the asterisk does not work as a wildcard, so the search succeeds only with the exact "web*" string.


<WILDCARD>
 Finds documents that contain the wildcard characters in the search string. You can use this to get words that have some similar spellings but which would not be found by stemming the word.

Some characters, such as * and ?, automatically indicate a wildcard-based search, so you don't have to include the word <WILDCARD>.


<WILDCARD> plan*

Finds documents that contain plan, plane, and planet as well as any word that begins with plan, such as planned, plans, and planetopolis.

See the next section for more details and examples.


<WORD>
 Finds documents that contain the specified word.  <WORD> theme

Finds documents that contain theme, thematic, themes, and other words that stem from theme.



Using wildcards

You can use wildcards to obtain special results. For example, you can find documents that contain words that have similar spellings but are not stemmed variants. For example, plan stems into plans and planning but not plane or planet. With wildcards, you can find all of these words.

Some characters, such as * and ?, automatically indicate a wildcard-based search and do not require you to use the <WILDCARD>operator as part of the expression.
Table 5-4: Wildcard operators
Character  Description
*  Specifies 0 or more alphanumeric characters. For example, air* finds documents that contain air, airline, and airhead.

Cannot use this wildcard as the first character in an expression.

This wildcard is ignored in a set of ([ ]) or in an alternative pattern ({ }).

With this wildcard, the <WILDCARD> operator is implicit.
?  Specifies a single alphanumeric character, although you can use more than one ? to indicate multiple characters. For example, ?at finds documents that contain cat and hat, while ??at finds documents that contain that and chat.

This wildcard is ignored in a set of ([ ]) or in an alternative pattern ({ }).

With this wildcard, the <WILDCARD> operator is implicit.
{}  An alternative pattern that specifies a series of patterns, one for each pattern separated by commas. For example,
<WILDCARD> `Chat{s, ting, ty}`
finds documents that contain chats, chatting, and chatty.

You must enclose the entire string in back quotes and you cannot have any embedded spaces.
[ ]
A set that specifies a series of characters that can be
used to find a match. For example,

<WILDCARD> `[chp]at`

finds documents that contain cat, hat, and pat.

You must enclose the entire string in back quotes and you cannot have any embedded spaces.
^  Specifies one or more characters to exclude from a set. For example, <WILDCARD> `C[^io]t` finds documents that contain cat and cut, but not cot.

The caret (^) must be the first character after the left bracket.
-  Specifies a range of characters in a set. For example, <WILDCARD> `Ch[a-j]t` finds documents that contain any four-letter word from chat to chjt.



Wildcards as literals

Sometimes you may want to search on characters that are normally used as wildcards, such as the *or? expression. To use a wildcard as a literal, you must precede it with a backslash. In the case of asterisks, you must use two backslashes. For example, to search on a magazine with a title of Zine***, you would type:

<WILDCARD>Zine***
Several characters have special meaning for the search engine and require you to use back quotes to be interpreted as literals. The special search characters are listed here: For example, to search for the string "a{b", you would type

<WILDCARD>`a{b`
For another example, if you wanted to search on the string "c`t", which contains a back quote, you would type

<WILDCARD>`c``t`
